집에서 포트폴리오 작업을 할 때 , 2~3일동안 세팅 하는데 너무나도 어려웠다.
2~3일동안 세팅하면서 깨달았던 점을 작성하려고 한다.
❌ 오류 내용 :

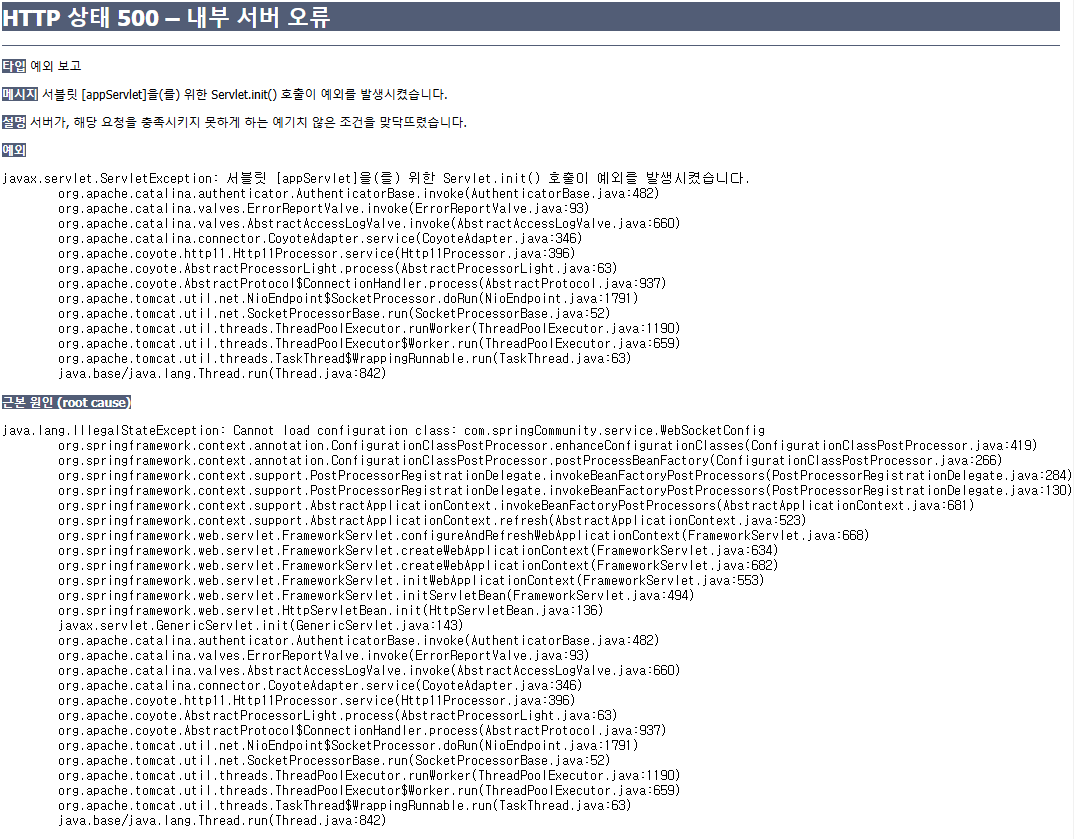

1. 서블릿 [appServlet]을(를) 위한 Servlet.init() 호출이 예외를 발생시켰습니다. - UnsatisfiedDependencyException / BeanCreationException <br/>
2. java.lang.IllegalStateException: Cannot load configuration class: com.springCommunity.service.WebSocketConfig <br/>
1.해당 오류는 appServlet에서 Bean과 관련된 오류이기 때문에 , servlet-context.xml을 들어가 오류에 해당하는 내용을 찾아봤다.
그러나 결과적으로 잘못된 내용은 없었고 , sts의 오류였다. project 클린 후 재부팅 하니 오류는 사라졌다.
<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/mvc"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:beans="http://www.springframework.org/schema/beans"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:task="http://www.springframework.org/schema/task"
xmlns:security="http://www.springframework.org/schema/security"
xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"
xsi:schemaLocation="http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security-3.2.xsd
http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task-4.3.xsd
http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring-1.2.xsd
http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">
<!-- DispatcherServlet Context: defines this servlet's request-processing infrastructure -->
<!-- Enables the Spring MVC @Controller programming model -->
<annotation-driven >
<argument-resolvers>
<beans:bean class="org.springframework.security.web.bind.support.AuthenticationPrincipalArgumentResolver" />
</argument-resolvers>
</annotation-driven>
<!-- Handles HTTP GET requests for /resources/** by efficiently serving up static resources in the ${webappRoot}/resources directory -->
<resources mapping="/resources/**" location="/resources/" />
<!-- Resolves views selected for rendering by @Controllers to .jsp resources in the /WEB-INF/views directory -->
<beans:bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<beans:property name="prefix" value="/WEB-INF/views/" />
<beans:property name="suffix" value=".jsp" />
</beans:bean>
<context:component-scan base-package="com.springCommunity.controller" />
<context:component-scan base-package="com.springCommunity.controller" />
<context:component-scan base-package="com.springCommunity.service" />
<context:component-scan base-package="com.springCommunity.dao" />
<context:component-scan base-package="com.springCommunity.filter" />
<context:component-scan base-package="com.springCommunity.scheduler" />
<task:scheduler id="emailSchedulers" pool-size="5"/>
<task:annotation-driven scheduler="emailSchedulers"/>
<!-- WebSocket Config Bean
<beans:bean class="com.springCommunity.service.WebSocketConfig" />-->
<beans:bean id="multipartResolver" class="org.springframework.web.multipart.support.StandardServletMultipartResolver"/>
</beans:beans>

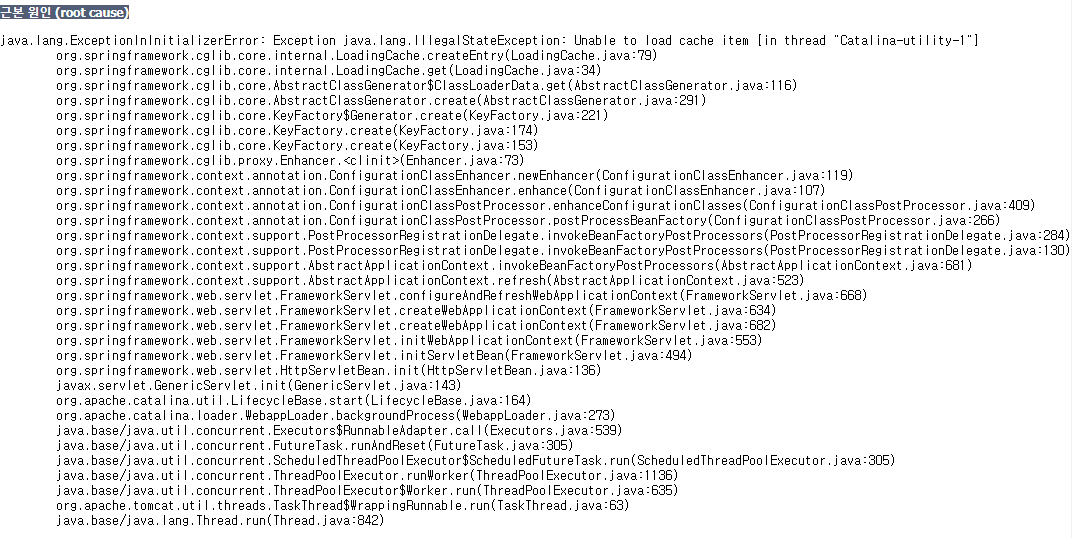

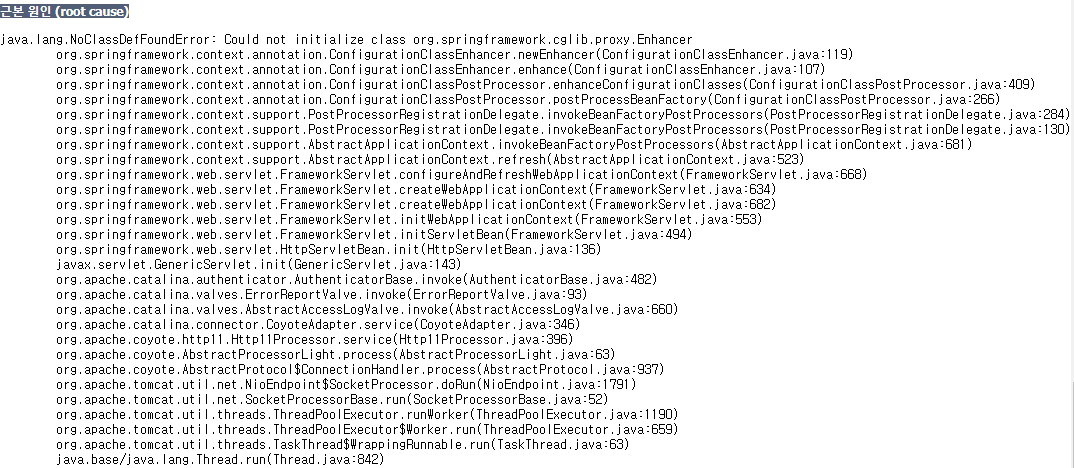

2. java.lang.IllegalStateException: Cannot load configuration class: com.springCommunity.service.WebSocketConfig <br/>
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>edu.springMyCommu</groupId>
<artifactId>controller</artifactId>
<name>springMyCommu</name>
<packaging>war</packaging>
<version>1.0.0-BUILD-SNAPSHOT</version>
<properties>
<java-version>11</java-version>
<org.springframework-version>4.3.3.RELEASE</org.springframework-version>
<spring.security.version>3.2.10.RELEASE</spring.security.version>
<org.aspectj-version>1.6.10</org.aspectj-version>
<org.slf4j-version>1.6.6</org.slf4j-version>
</properties>
<dependencies>
<!-- https://mvnrepository.com/artifact/javax.mail/mail -->
<dependency>
<groupId>javax.mail</groupId>
<artifactId>mail</artifactId>
<version>1.4.7</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.springframework/spring-context-support -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context-support</artifactId>
<version>${org.springframework-version}</version>
</dependency>
<!-- jackson -->
<dependency>
<groupId>org.codehaus.jackson</groupId>
<artifactId>jackson-mapper-asl</artifactId>
<version>1.9.13</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.8.5</version>
</dependency>
<!-- Spring -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${org.springframework-version}</version>
<exclusions>
<!-- Exclude Commons Logging in favor of SLF4j -->
<exclusion>
<groupId>commons-logging</groupId>
<artifactId>commons-logging</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${org.springframework-version}</version>
</dependency>
<!-- AspectJ -->
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjrt</artifactId>
<version>${org.aspectj-version}</version>
</dependency>
<!-- Logging -->
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>${org.slf4j-version}</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>jcl-over-slf4j</artifactId>
<version>${org.slf4j-version}</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
<version>${org.slf4j-version}</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.15</version>
<exclusions>
<exclusion>
<groupId>javax.mail</groupId>
<artifactId>mail</artifactId>
</exclusion>
<exclusion>
<groupId>javax.jms</groupId>
<artifactId>jms</artifactId>
</exclusion>
<exclusion>
<groupId>com.sun.jdmk</groupId>
<artifactId>jmxtools</artifactId>
</exclusion>
<exclusion>
<groupId>com.sun.jmx</groupId>
<artifactId>jmxri</artifactId>
</exclusion>
</exclusions>
<scope>runtime</scope>
</dependency>
<!-- @Inject -->
<dependency>
<groupId>javax.inject</groupId>
<artifactId>javax.inject</artifactId>
<version>1</version>
</dependency>
<!-- Servlet -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
<scope>provided</scope>
</dependency>
<dependency><!-- 추가 -->
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.0.1</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.2</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<!-- Test -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.7</version>
<scope>test</scope>
</dependency>
<!-- Spring Security -->
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-core</artifactId>
<version>${spring.security.version}</version>
<type>jar</type>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-web</artifactId>
<version>${spring.security.version}</version>
<type>jar</type>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-config</artifactId>
<version>${spring.security.version}</version>
<type>jar</type>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-taglibs</artifactId>
<version>${spring.security.version}</version>
<type>jar</type>
<scope>compile</scope>
</dependency>
<!-- mysql -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.32</version>
</dependency>
<!-- Spring-jdbc -->
<!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${org.springframework-version}</version>
</dependency>
<!-- Spring-test -->
<!-- https://mvnrepository.com/artifact/org.springframework/spring-test -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${org.springframework-version}</version>
</dependency>
<!-- Common-dbcp -->
<dependency>
<groupId>commons-dbcp</groupId>
<artifactId>commons-dbcp</artifactId>
<version>1.4</version>
</dependency>
<!-- DB MyBatis 연결시 필요 -->
<!-- MyBatis 3.4.1 -->
<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.4.1</version>
</dependency>
<!-- MyBatis-Spring -->
<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>1.3.0</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml</artifactId>
<version>5.2.3</version>
</dependency>
<dependency>
<groupId>org.apache.logging.log4j</groupId>
<artifactId>log4j-core</artifactId>
<version>2.20.0</version> <!-- 최신 버전으로 업데이트 -->
</dependency>
<!-- Spring WebSocket 의존성 추가 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-websocket</artifactId>
<version>${org.springframework-version}</version>
</dependency>
<!-- CGLIB 의존성 추가 웹소켓과 관련해서 필요함 -->
<!-- https://mvnrepository.com/artifact/cglib/cglib -->
<dependency>
<groupId>cglib</groupId>
<artifactId>cglib</artifactId>
<version>3.2.2</version>
</dependency>
<!-- spring-core 의존성 추가 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>${org.springframework-version}</version>
</dependency>
<!-- commons -logging 의존성 추가 -->
<dependency>
<groupId>commons-logging</groupId>
<artifactId>commons-logging</artifactId>
<version>1.2</version>
</dependency>
<!-- jackson-databind 버전 업데이트 -->
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.13.4.2</version>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<artifactId>maven-eclipse-plugin</artifactId>
<version>2.9</version>
<configuration>
<additionalProjectnatures>
<projectnature>org.springframework.ide.eclipse.core.springnature</projectnature>
</additionalProjectnatures>
<additionalBuildcommands>
<buildcommand>org.springframework.ide.eclipse.core.springbuilder</buildcommand>
</additionalBuildcommands>
<downloadSources>true</downloadSources>
<downloadJavadocs>true</downloadJavadocs>
</configuration>
</plugin>
<plugin>
<!-- Maven Compiler Plugin -->
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.1</version><!-- 수정 -->
<configuration>
<source>11</source> <!-- 자바 11 버전 -->
<target>11</target>
<compilerArgument>-Xlint:all</compilerArgument>
<showWarnings>true</showWarnings>
<showDeprecation>true</showDeprecation>
</configuration>
</plugin>
<!-- Maven War Plugin -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-war-plugin</artifactId>
<version>3.3.2</version> <!-- 최신 안정 버전 -->
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>exec-maven-plugin</artifactId>
<version>1.2.1</version>
<configuration>
<mainClass>org.test.int1.Main</mainClass>
</configuration>
</plugin>
</plugins>
</build>
</project>위에 작성된 pom.xml을 수정한 뒤에 tomcat과 연결해서 실행을 해도 java.lang.IllegalStateException: Cannot load configuration class: com.springCommunity.service.WebSocketConfig <br/> 오류가 계속해서 발생하였다.
<br/>
오류 내용
✔️ 해결방법 <br/>
기존에 작성한 pom.xml과 나의 컴퓨터에 설정된 내용이 맞지 않아서 오류가 발생하고 있었다. <br/>
근본 원인을 위에서부터 하나씩 보았다.<br/>
웹소켓과 관련된 jar를 추가해야한다는 내용을 보고 , 아래의 내용을 pom.xml에 추가하였다 .<br/>
그 후에 Run on Server를 실행해도 [그림1,2,3]의 오류가 발생하였고, 웹 소켓이 아닌 시큐리티와 호환이 맞지 않을 수도 있다는 생각이 들게 되었고, pom.xml의 RELEASE부분을 업그레이드 시켰더니 잘 작동하게 되었다.<br/>
<!-- CGLIB 의존성 추가 웹소켓과 관련해서 필요함 -->
<!-- https://mvnrepository.com/artifact/cglib/cglib -->
<dependency>
<groupId>cglib</groupId>
<artifactId>cglib</artifactId>
<version>3.2.2</version>
</dependency><!-- pom.xml에서 수정된 내용 -->
<org.springframework-version>5.2.22.RELEASE</org.springframework-version>
📗 느낀 점 :
java.lang.IllegalStateException: Cannot load configuration class: com.springCommunity.service.WebSocketConfig 오류의 근본원인의 WebSocketConfig의 부분만 보고 웹 소켓 문제인게 아닌가 하고 찾아본게 너무나도 시간을 오래 끌게된 원인으로 느꼈다. <br/>
또한 security를 생각하지 못했던게 아쉬웠다.. <br/>
'스프링' 카테고리의 다른 글
| [Spring] @RestController , @RequestBody, @ResponseBody (0) | 2025.02.06 |
|---|---|
| [Spring] ResponseEntity (0) | 2025.02.06 |
| [Spring] tomcat 연결 후 브라우저 설정 (0) | 2025.01.20 |
| sts와 이클립스 설치 관련, STS3 Legacy Project (0) | 2025.01.20 |
| [Spring] Autowired 선언 오류 (0) | 2024.12.09 |
